Born for personalized customization and small-batch production.

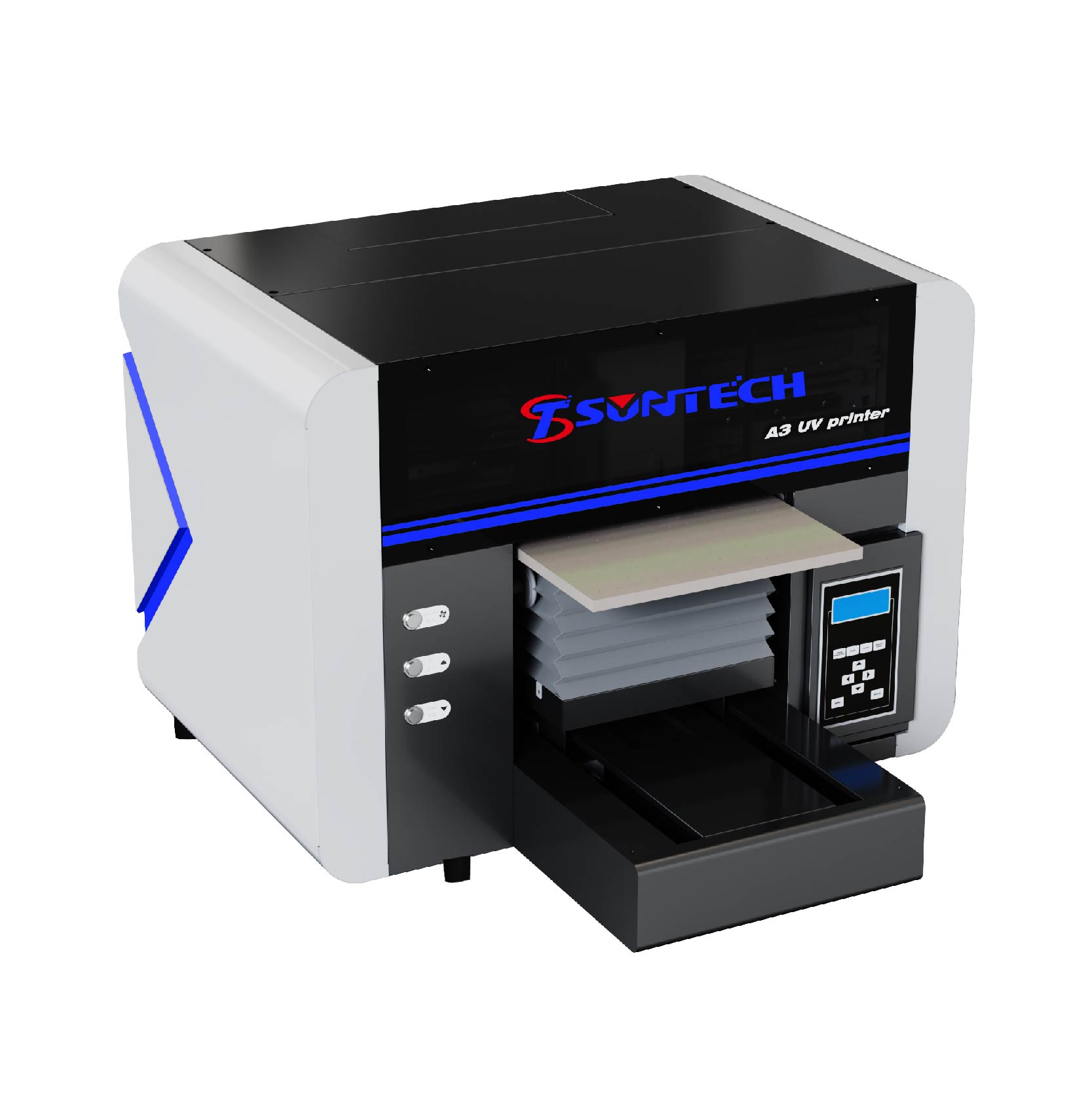

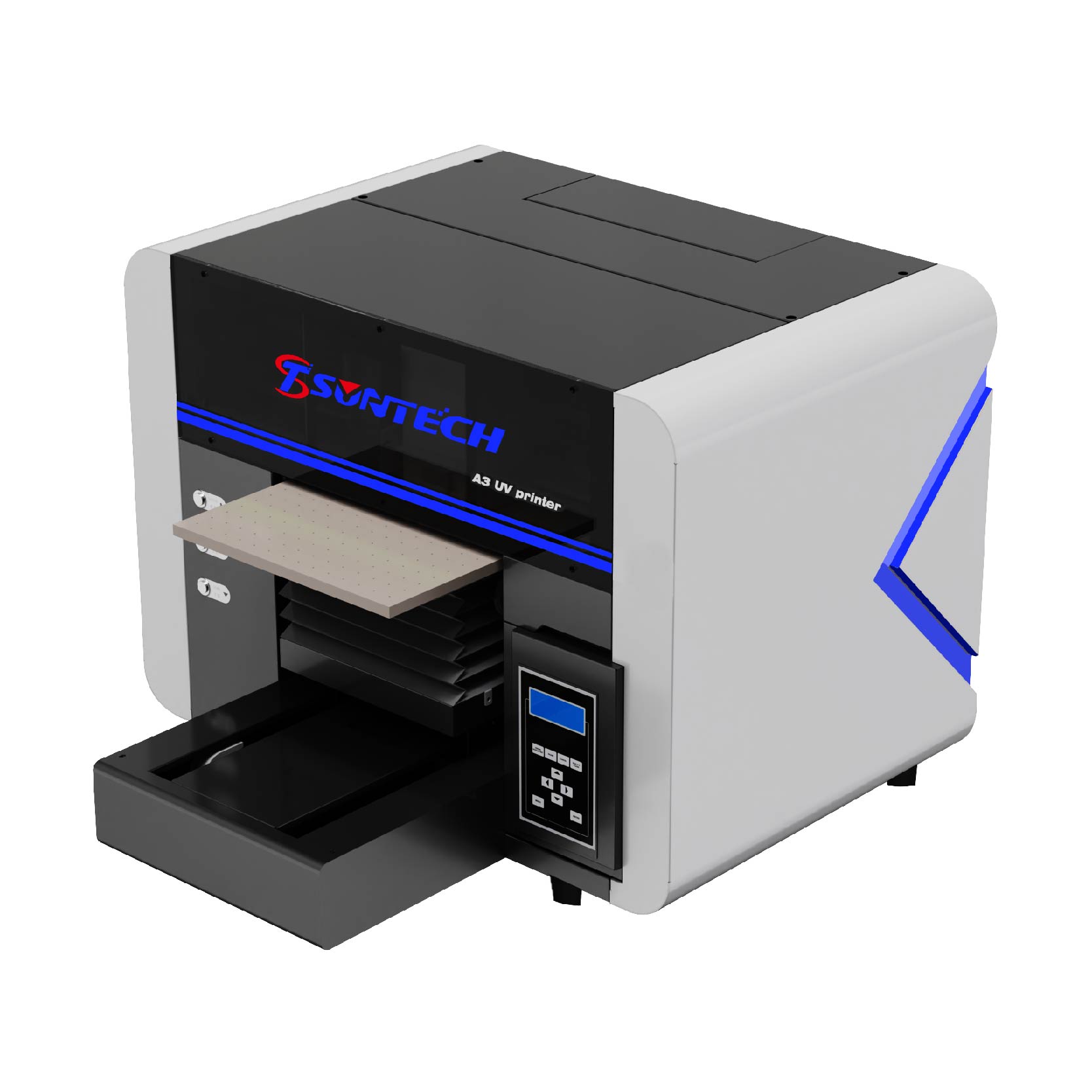

The desktop small-format UV flatbed printer is a compact industrial printing device specifically designed for individual entrepreneurs, small workshops, and customized processing needs. Equipped with the high-precision Epson XP600 printhead, it delivers excellent image output quality and supports direct printing on a wide range of materials. With a print size of 300×400mm, it is ideal for printing color designs on small-sized crafts, phone cases, acrylic, leather, wood, metal sheets, glass, and other flat surfaces. Compact yet efficient, it offers outstanding performance.
Core Technical Features
1. Printhead: Epson XP600
- Nozzle Count: Each printhead includes 6 channels with 1440 nozzle
- Printing Precision: Supports resolutions up to 1440 dpi
- Color Configuration: Capable of CMYK + White Ink + Varnish setup, enabling gloss, embossing, matte, and other special effects
- Stability: The XP600 offers excellent stability and cost-effectiveness, making it a common core component in desktop UV printing devices
2. Printing Size & Platform Structure
- Effective Print Area: 300mm × 400mm
- Platform Structure: High-precision vacuum adsorption platform ensures stable and accurate media positioning
- Z-axis Adjustment: Supports up to 80mm height adjustment to accommodate materials of varying thickness
3. Ink System
- UV-Curable Ink: Instantly dry upon printing, strong adhesion, compatible with various material surfaces
- Ink Supply: Continuous ink supply system for sustained and stable output
- Ink Circuit Control: Independent ink channels to prevent color cross-contamination, supports white ink circulation to avoid sedimentation and clogging
4. Curing System
- LED UV Lamp: Cold light source curing, no thermal radiation, safe and environmentally friendly
- Service Life: Over 20,000 hours of use, low energy consumption, and long lifespan
5. Control System & Software Support
- Operating System Compatibility: Windows 7 / 10
- Printing Software: Compatible with mainstream RIP software such as Maintop, Photoprint, PrintFactory, etc.
- Image Processing: Supports TIFF, JPEG, PNG, PDF formats, with ICC color management functionality
Application Fields
The UV-3040XP600 flatbed printer is highly versatile and can be widely applied in the following areas:
- Personalized Customization
(e.g., phone cases, lighters, USB drives, badges, keychains) - Small-Batch Craft Production
(e.g., acrylic signs, wooden accessories, ceramic tile samples) - Commercial Display
(e.g., product prototyping, gift packaging, small-scale advertising boards) - High-End Packaging Printing
(e.g., spot UV effects on perfume boxes, gift boxes)
Machine Details at a Glance
1. lift-type vacuum platform
A lift-type vacuum platform refers to a printer work platform equipped with an electric or screw-driven system that enables overall height adjustment. It is integrated with a vacuum adsorption structure, allowing it to securely hold various flat printing media in place. This design significantly enhances printing stability, precision, and media adaptability—especially in desktop UV printers.
2. Ink Cartridge
The ink cartridge serves as a crucial intermediary unit connecting the main/sub ink tanks to the printhead. It typically features:
Independent Color Channels: Each cartridge holds a specific ink color, ensuring accurate color separatio n.
Sealed, Leak-Proof Design: Prevents ink leakage and contamination, maintaining a clean and reliable printing environment.
Stable Ink Pressure: Helps regulate and stabilize ink flow, which is essential for consistent droplet formation and print quality.
The design and quality of the ink cartridge directly impact inkjet uniformity, color consistency, and overall printing safety and reliability.
3. Multi-Function Control Panel
- Print Control
One-touch operation: Start, pause, or cancel print jobs with a single button
Automatic ink return, carriage homing, and bidirectional movement
Auto printhead origin calibration ensures accurate starting position
- Platform Control
Height Adjustment: Works with the lift-type vacuum platform to precisely control Z-axis height (adjustable to 0.1mm)
Vacuum Control: Independent switch for the vacuum adsorption system
Auto Positioning: Automatic recognition of platform home position and maximum height limit
-
Printhead Maintenance
Quick execution of flash spray, anti-clog purging, and auto-cleaning
Customizable maintenance cycle settings via menu
Real-time monitoring of printhead status, including temperature, voltage, and nozzle condition
-
Ink & UV Lamp Status Monitoring
Real-time ink level display (with liquid level sensors)
White ink circulation status indicator
Independent on/off control for UV lamp, with work timer and thermal protection
Separate control for varnish (clear coat) printing function
4. Wiper system
The wiper system is one of the key components in the printhead maintenance structure of a UV printer. Its primary function is to automatically remove residual ink, dust, or microscopic particles from the nozzle surface—either before printing or during intermittent maintenance cycles. This ensures that the nozzles remain unobstructed, delivering sharp and flawless print quality.
Typically working in conjunction with the cleaning station, the wiper system plays a crucial role in:
Maintaining nozzle cleanliness
Ensuring consistent print quality
Prolonging printhead lifespan
Enhancing overall printing stability
It is an essential safeguard for reliable, long-term UV printing performance.
Wide Industry Applications, Diverse Creative Implementation
Desktop UV flatbed printers, with their compact design, low operating costs, broad material compatibility, and versatile application scenarios, are widely used across various sectors. They are particularly well-suited for customized processing, creative manufacturing, personalized gifts, and small-scale industrial production. These printers are ideal for entrepreneurs, small workshops, advertising agencies, and e-commerce customization businesses, enabling creative ideas to be efficiently brought to life.
